KRONZ Pre-assembled M8 Male Connector with Molded Cable IEC 61076-2-101 Standard Black Gold-plated Contacts

Model Number : M0804MA-2/S00R

Place of Origin : Guangdong, China

MOQ : 50

Price : $2.69-3.58

Type : Contact

Color : Black

Material : Alloy

IP rate : IP67

Endurance : >100 cycles

Insulation Resistance : ≥ 100MΩ

Contact resistance : ≤ 5mΩ

Ambient temperature : -25~+85℃

Shielded : Yes

Pin count : 3 / 4 / 5 / 6 / 8

Connector nut material : Brass, Nickel-plated

Connector contacts material : Brass, Gold-plated

Connector insert material : PA, Black

Connector overmold material : TPU, Black

Seal material : FPM/FKM

Contact Now

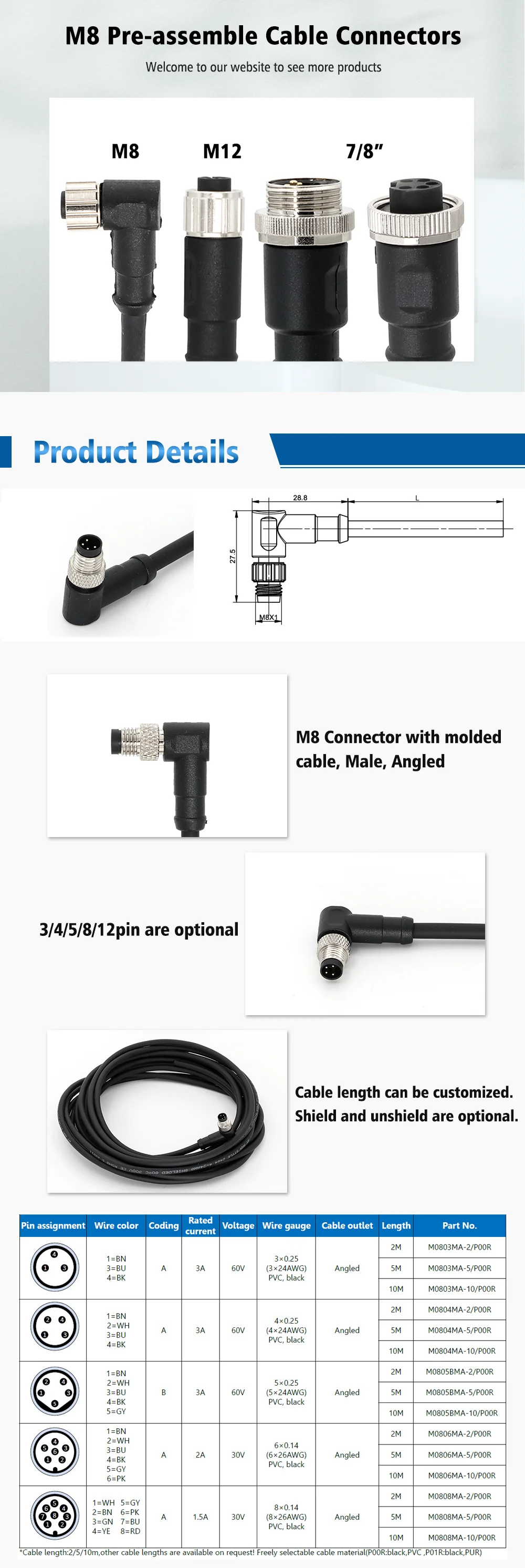

KRONZ Pre-assembled M8 Male Connector with Molded Cable IEC 61076-2-101 Standard Black Gold-plated Contacts

KRONZ Pre-assembled Cable M8 Connectors 3/4/5/6/8 Pin Angled PVC Black Unshielded M8 Male Connectors with Molded Cable

Brand: Kronz

Color: Black

Material: PA

Technicial Patameters
Standard:	IEC 61076-2-101	Insulation resistance:	≥ 100MΩ
Connector nut/screw:	Brass, Nickel-plated	Contact resistance:	≤ 5mΩ
Connector contacts:	Brass, Gold-plated	Pollution grade:	3
Connector insert:	PA, Black	Ambient temperature:	-25~+85℃
Connector overmold:	TPU, Black	Mating endurance:	>100 cycles
Seal/O-ring:	FPM/FKM	Protection rating:	IP67

FAQ

Q1: Are you a manufacturer? A1: Yes, we are an experienced manufacturer with our research and development, several production line and in-house lab. Q2: Do you accept sample order？ A2: Yes, we do. You can place a sample order with us to test our superior quality and services. Q3: Could you produce customized produces? A3: Yes, we can produce base on customer provided sample or technical drawings. We also can offer customized logo and package design for mass production. Q4: What is your terms of payment? A4: T/T payment, 30%-50% deposit, balance before shipment. Q5: What is your lead time after payment? A5: Normally, 3-5 working days for sample order, 10-15 working days for mass production. If your project involves new molds, lead time is subject to custom product complex. Q6: Do you offer guarantee for the products? A6: Yes, we offer 2-3 years’ warranty. Q7: How do you control the quality? A7: Quality is priority. We have professional quality inspections in every production process to strictly control the products. A final quality inspection will be conducted on the finished products before packaging. Our factory has gained ISO9001, GJB9001, QPL lSO14001, certificates.
